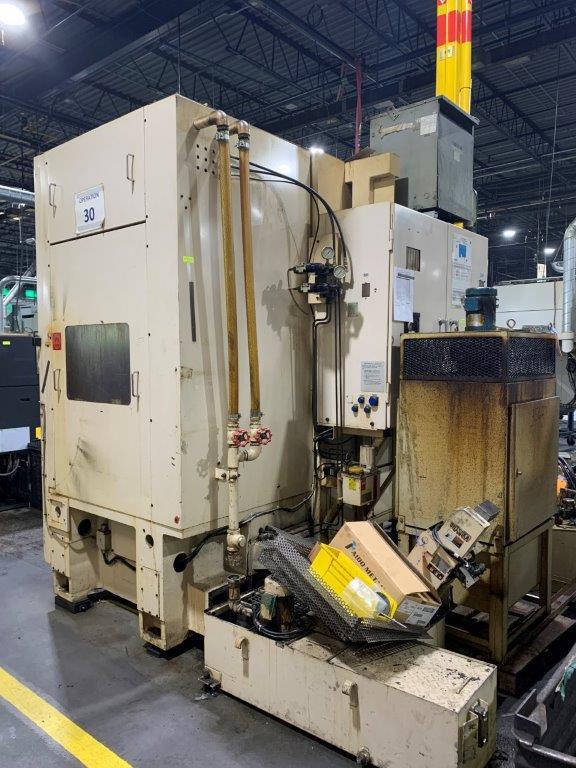

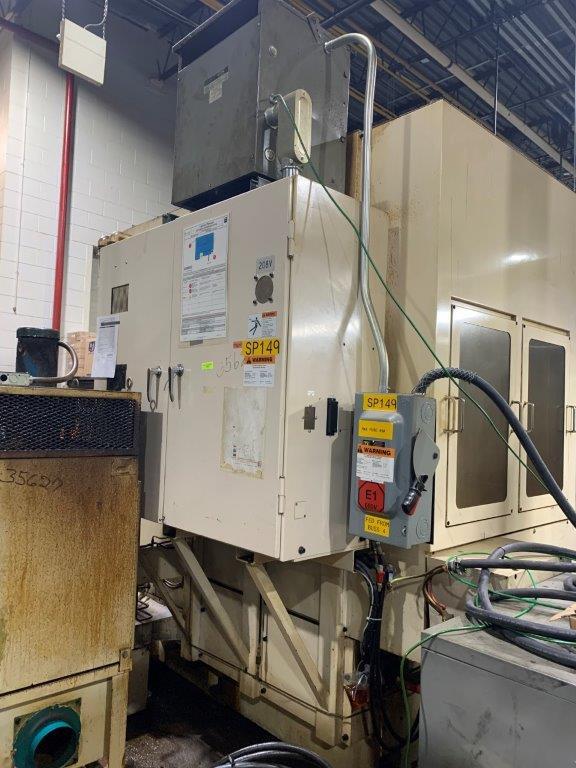

Mitsubishi SD25 CNC Gear Shaper
Description

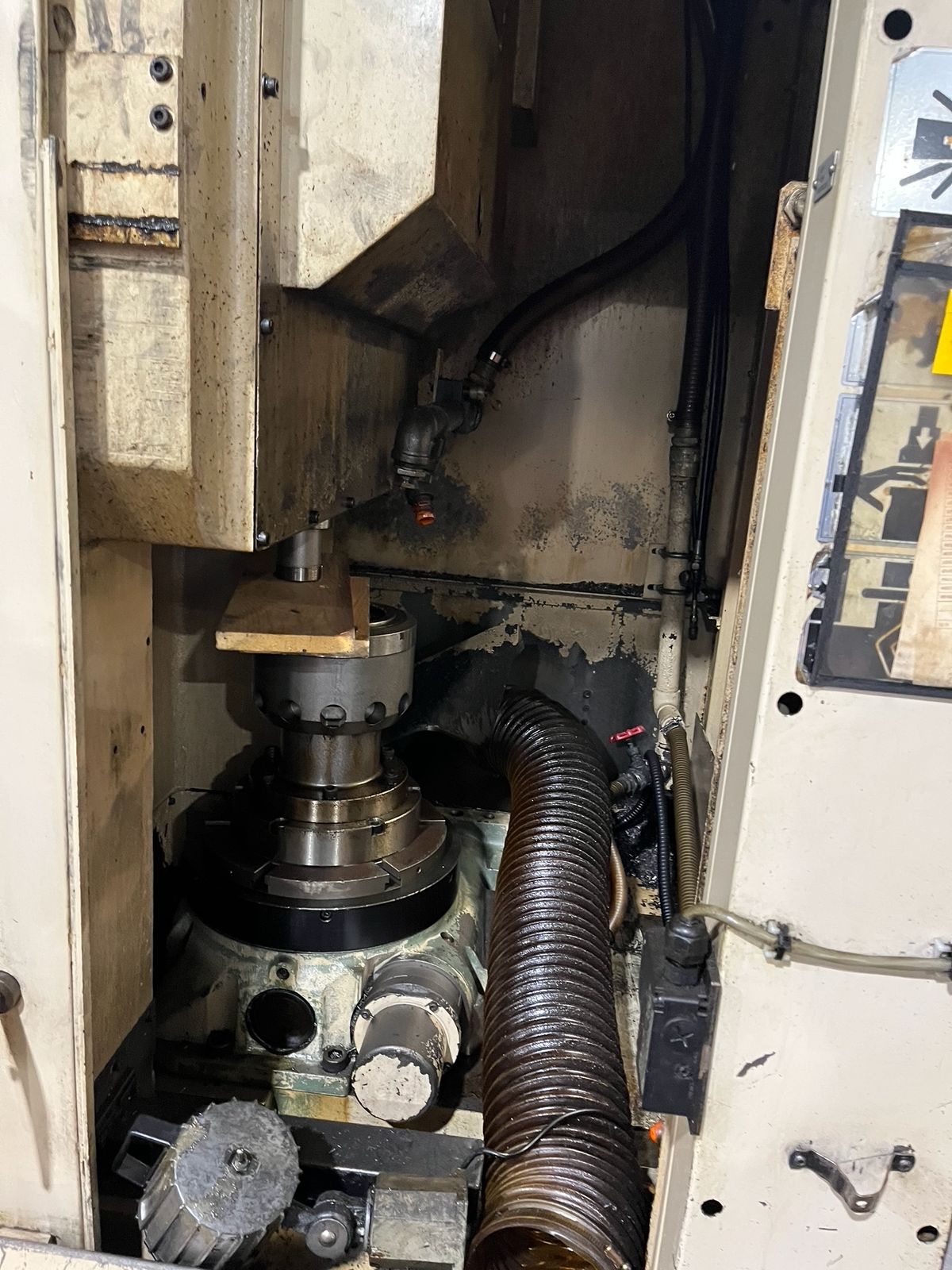

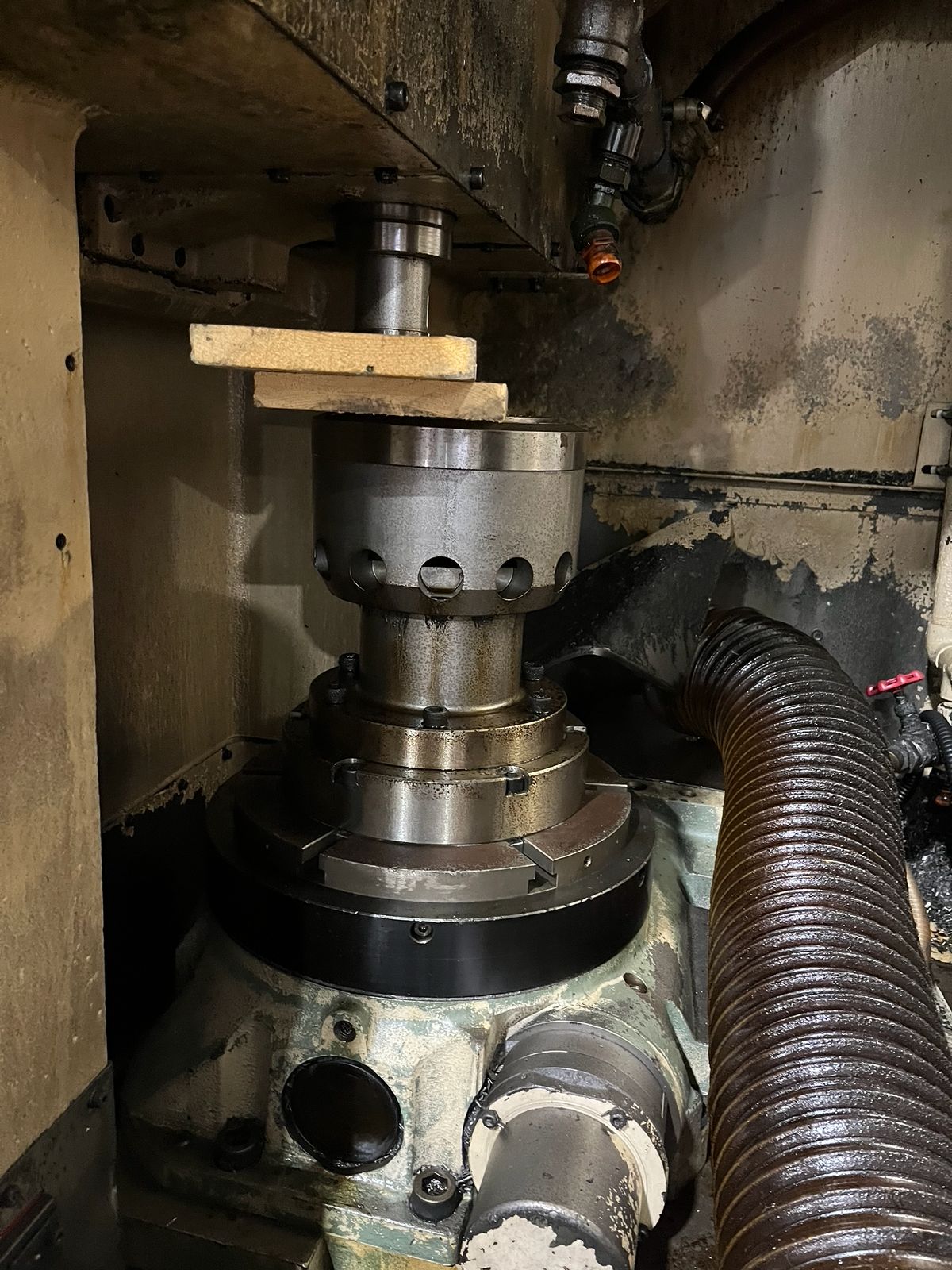

Mitsubishi SD25 CNC Gear Shaper

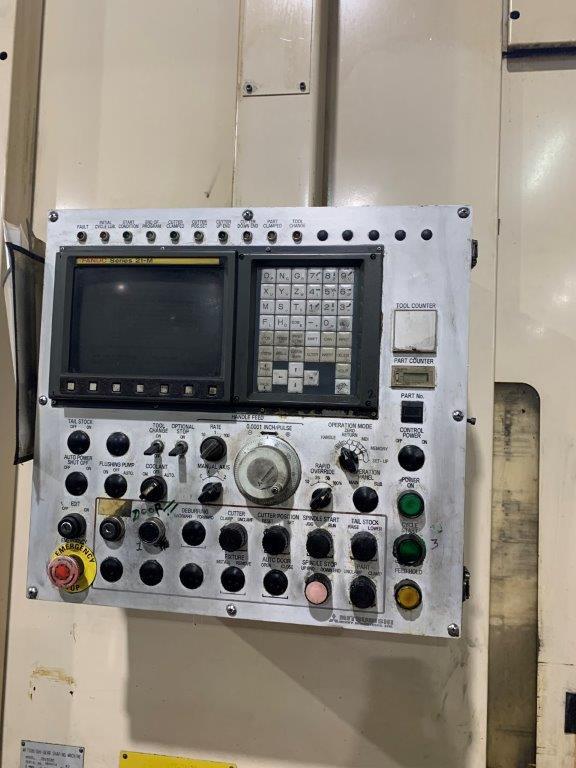

CNC Gear Shaper

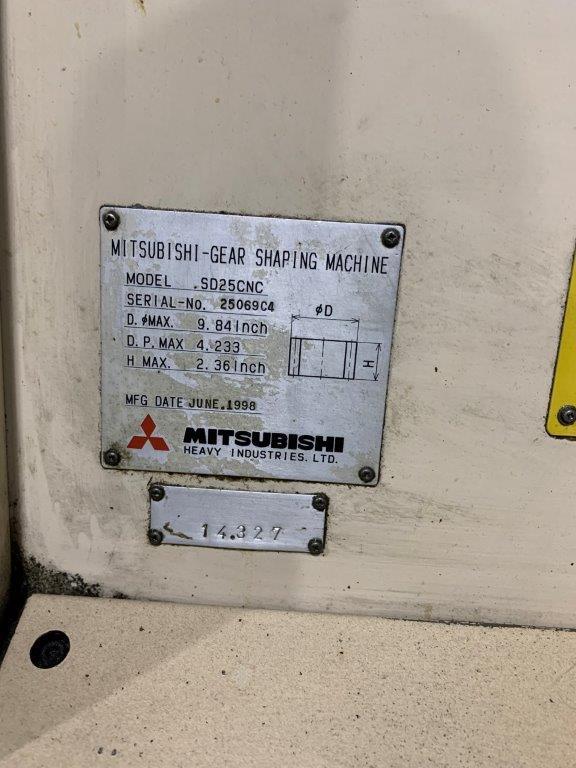

Specification:
External Gear 9.843 in.: ø250 mm
Internal Gear 4.724 in. + Cutter Diameter, Max. 9.843 in. Ø120mm + Cutter Diameter, Max.250 mm
Workpiece Module, Max. or Diametral Pitch, Min.: 6 4.2333
Workpiece Face Width, Max.: 2.362 in. 60 mm
Cutter Stroke, Max.: 2.756 in. 70 mm
Main Spindle Travel, Max.: 3.347 in. 85 mm
Main Spindle Stroke Speed: 300 to 1,500 str/min
Radial Feed: -2.362 to 10.630 in. -60 to 270 mm
Radial Feed Rate: 0.00004 to 0.004 in/str 0.001 to 0.1 mm/str
Radial Rapid Feed Rate: 32.8 ft./min 10,000 mm/min
Number of Cuts: 1, 2, 3, or 4
Circumferential Feed Rate: 0.118 to 208.66 in/min 3 to 5,300 mm/min
Cutter Spindle Diameter: 3.937 in. ø90mm
Table Diameter: 12.992 in. ø330mm
Main Motor Output: 15HP/11kW (Continuous Rating)
Electrics: 3/60/220V
Approximate Dimensions: 86” FB x 96” LR x 105” Height
Approximate Weight: 14,500 lbs.
